M-dot series LED curtain for rental and building facade

M-dot Series

New generation flexible LED curtain for stage rental and media facade, ultra light, super transparent, quick installation, easy to form kinds of irregular shapes of led display for creative visual effect. High transparency rate, easy for stage light, fog, lasers go through the screen to create superb visual effect.

Characteristic

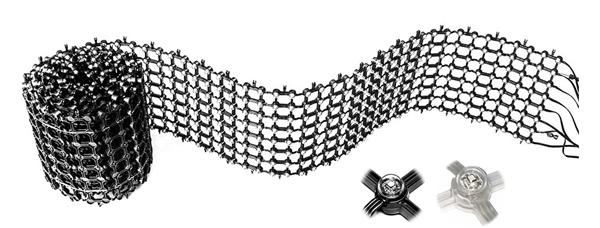

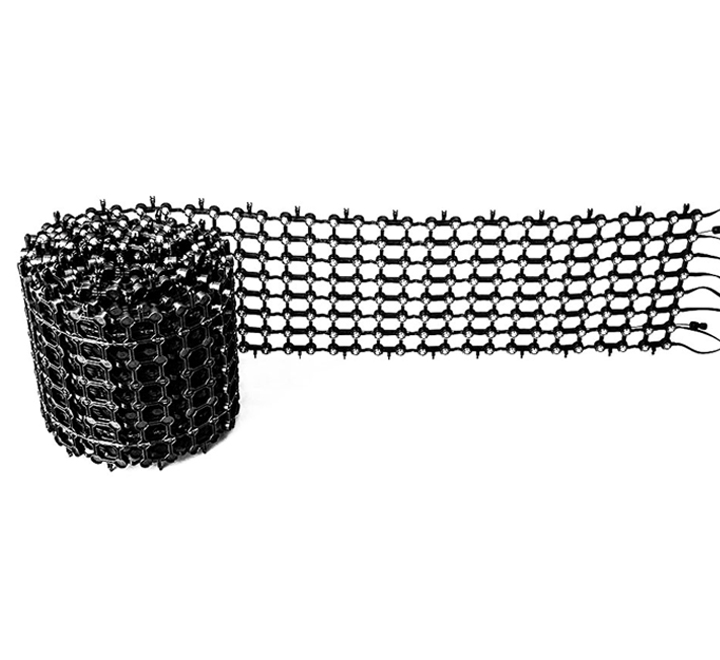

Super flexible and high transparency
Ultra flexible design make it can be curved freely to achieve various creative shapes like arch, cube, circle, wave, etc and customized size available, black or transparent cover in option.

Fast installation

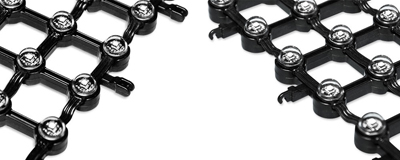

Fast inter-panel locks make it quick and easy to set up and dismantle large-scaled screen, free tools.
Quick hanging up by using the connectors with high-strength steel cable for fixing.

Waterproof

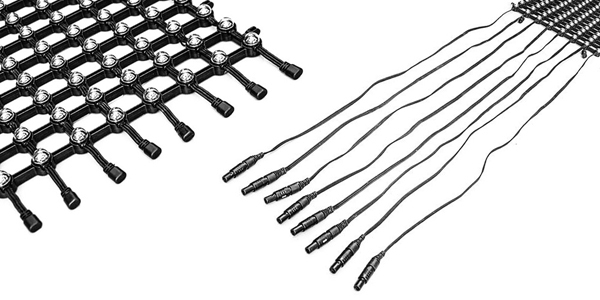

Head and tail of the panel with waterproof connectors.

Easy maintenance

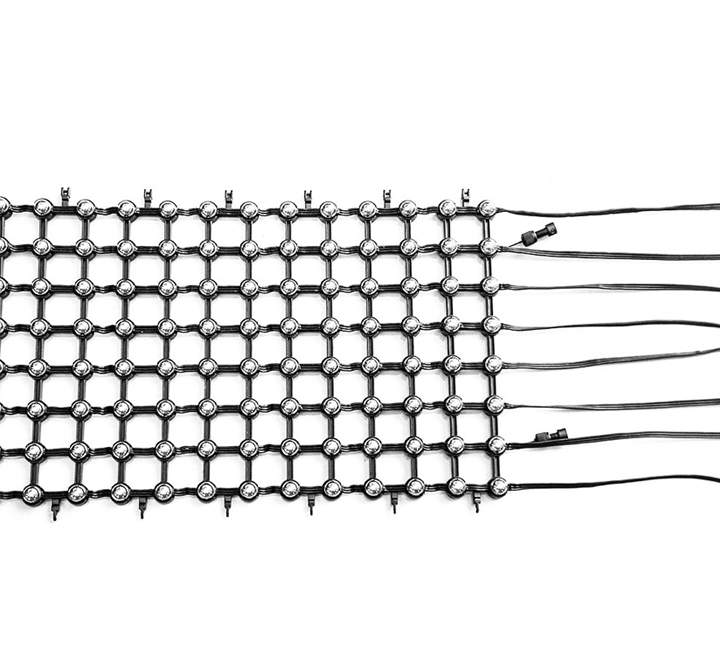

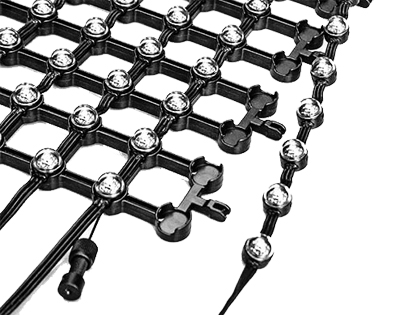

LED strips can be taken out to satisfy various creative ideas and easy maintenance.

Specifications

Accessory

Gallery

Model	M-dot37
Pixel Pitch	37.5mm / 56.25mm (pixel pitch can be customized)

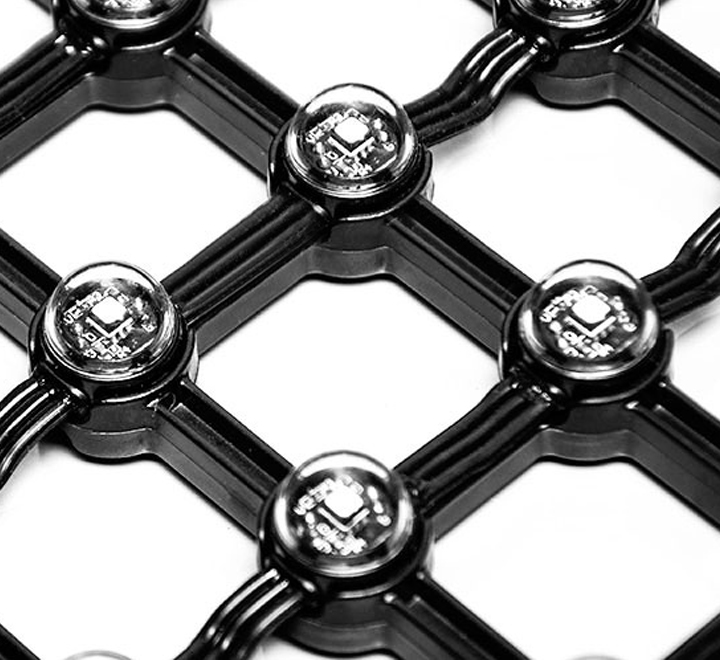

Pixel Configuration	SMD3535
Panel Size	300x4800 mm / 450x7200mm (size can be customized)
Panel Resolution	8x128 pixels
Panel Weight	4kg/sqm
Brightness	1600 nits
IP Rating(Front/Rear)	IP65
Refresh Rate	2000 Hz
Transparency Rate	50%
Scan Mode	Static
Max Power consumption	280W/sqm
Grey scale	12 bit
Viewing Angle(H/V)	140°/110°
Operating Temperature	-20~45°C
Main Power Source	AC 100~240V;50/60Hz
Input Voltage	7.5V DC
Humidity	10~90%RH
Life Time	100,000 Hours

Note: The specifications are for reference, actual values may vary.
