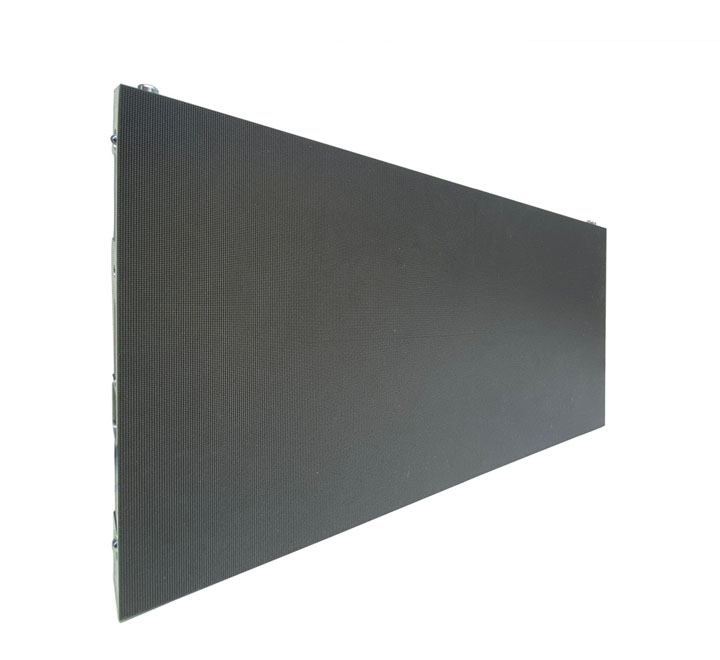

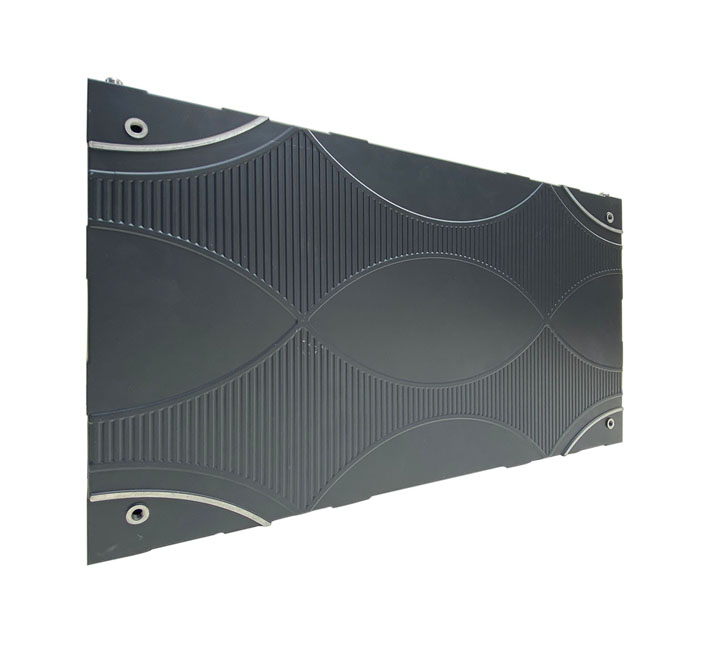

DC Series
DC Series
The DC series of small pitch LED display is high definition solution, for showing real 4K HD, otherwise, it’s low power consumption, long lifespan, high contrast ratio and high refresh rate, a good choice for indoor application.

Characteristic

Specifications

Accessory

Gallery

Model DC0.9 DC1.2 DC1.5 DC1.8
Pixel Pitch(mm) 0.9375 1.25 1.5625 1.875
Pixel Density(pixels/m2) 1,137,778 640,000 409,600 284,444
LED type IMD4 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1
Module Dimension 150 x 168.75mm
(5.90 x 6.65 in)
150 x 168.75mm
(5.90 x 6.65 in)
300 x 168.75mm
(5.90 x 6.65 in)
300 x 168.75mm
(5.90 x 6.65 in)
Module Resolution 160 x 180 120 x 135 192 x 108 160 x 90
Cabinet Dimension 600 x 337.5 x 29 mm
(23.62 x 13.29 x 1.14 in)
600 x 337.5 x 29 mm
(23.62 x 13.29 x 1.14 in)
600 x 337.5 x 29 mm
(23.62 x 13.29 x 1.14 in)
600 x 337.5 x 29 mm
(23.62 x 13.29 x 1.14 in)
Cabinet  Resolution 640 x 360 480 x 270 384 x 216 320 x 180
Cabinet Type and Material Die-Casting Aluminium Die-Casting Aluminium Die-Casting Aluminium Die-Casting Aluminium
Cabinet Weight  4.8 kg (10.56 lb) 4.8 kg (10.56 lb) 4.8 kg (10.56 lb) 4.8 kg (10.56 lb)
Viewing Angle H160°/V160° H160°/V160° H160°/V160° H160°/V160°
Brightness ≥800 nits ≥800 nits ≥800 nits ≥800 nits
Refresh Rate ≥3.840 Hz ≥3.840 Hz ≥3.840 Hz ≥3.840 Hz
Operating Power Source 100 - 240 V, 50 - 60 Hz 100 - 240 V, 50 - 60 Hz 100 - 240 V, 50 - 60 Hz 100 - 240 V, 50 - 60 Hz
Max. Power Consumption  720 W/m² 750 W/m² 720 W/m² 750 W/m²
Avg. Power Consumption  215 W/m² 260 W/m² 215 W/m² 260 W/m²
Serviceability Front Front Front Front
IP Rating IP30(Indoor) IP30(Indoor) IP30(Indoor) IP30(Indoor)
Operating Temp/Humidity -15°~ 55°C, 10~90% RH  -15°~ 55°C, 10~90% RH  -15°~ 55°C, 10~90% RH  -15°~ 55°C, 10~90% RH
Storage Temp/Humidity -20°~ 60°C, 10~90% RH  -20°~ 60°C, 10~90% RH  -20°~ 60°C, 10~90% RH  -20°~ 60°C, 10~90% RH
Life Span 100,000 h 100,000 h 100,000 h 100,000 h
Curving (Concave ) YES YES YES YES

Note: The Specifications are for reference, actual values may vary.
